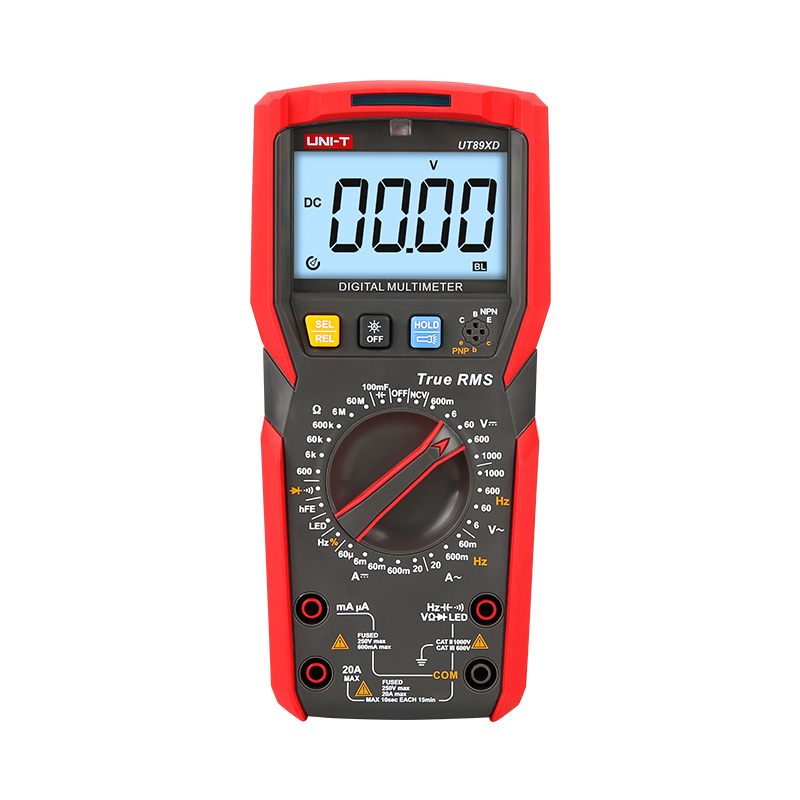

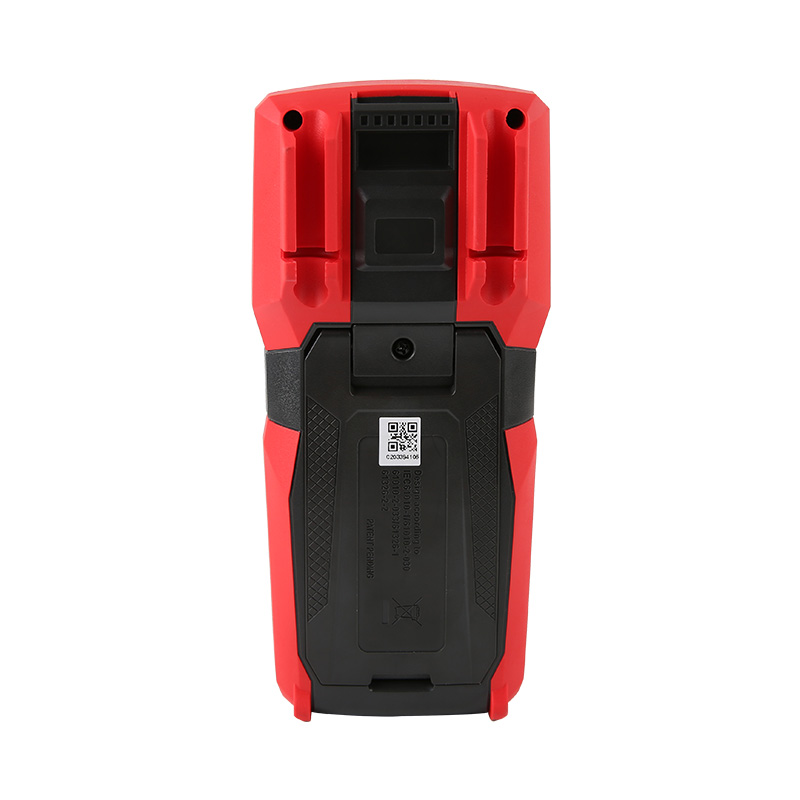

Multimetru 4-х разрядный Unit UT 89XD
|
Specifications |
Range |
UT89X |
UT89XD |
|
DC voltage (V) |
600mV/6V/60V/600V/1000V |
±(0.5%+2) |
±(0.5%+2) |
|
200mV/2V/20V/200V/1000V |
|||
|
AC voltage (V) |
6V/60V/600V/1000V |
±(0.8%+5) |
±(0.8%+5) |
|
200mV/2V/20V/200V/1000V |
|||
|
DC current (A) |
60μA/60mA/600mA/20A |
±(0.8%+8) |
|
|
60μA/6mA/60mA/600mA/20A |
±(0.8%+8) |
||
|
2000μA/200mA/20A |
|||
|
AC current (A) |
60mA/600mA/20A |
±(1%+12) |
±(1%+12) |
|
2000uA/200mA/20A |
|||
|
Resistance (Ω) |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
±(0.8%+3) |
±(0.8%+3) |
|
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ |
|||
|
Capacitance (F) |
100mF |
±(2.5%+20) |
±(2.5%+20) |
|
200mF |
|||
|
Conductance (ns) |
200nS |
||
|
Frequency (Hz) |
9.999Hz/9.999MHz |
±(0.1%+4) |
±(0.1%+4) |
|
60MHz |
|||
|
Duty cycle |
0.1%~99.9% |
±(2%+5) |
±(2%+5) |
|
Temperature (℃) |
-40℃~1000℃ |
±(2%+4) |
|
|
Temperature (℉) |
-40℉~1832℉ |
±(2%+8) |
|
|
Live wire test |
√ |
||
|
LED test |
12V |
||
|
Audible/visual alarm |
V/A/Cap/Diode |
Live/hFE/NCV |
LED/hFE/NCV |
|
Transistor Hfe |
√ |
√ |
|
|
Dual range NCV test |
√ |
√ |
|
|
Flashlight |
√ |
√ |
|
|
MAX/MIN |
|||
|
Peak Hold |
|||
|
LPF measurement |
